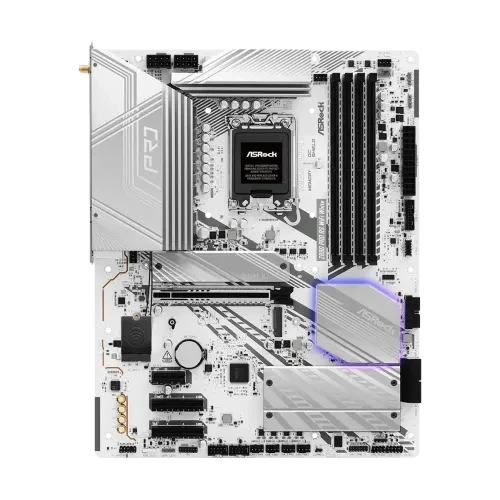

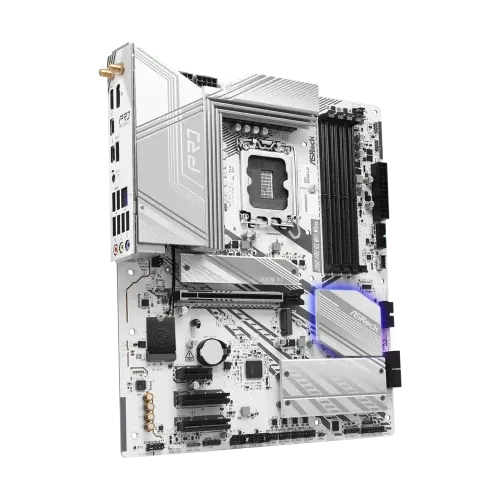

ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard

ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard

(0) 0 Reviews 0 Orders 0 Wish listed

Product Code: 125279

Key Features

Model: Z890 Pro RS WiFi White
Supported CPU: Intel Core Ultra Processors (Series 2) (LGA1851RL-ILM)
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066MHz+(OC)
Graphics Output: 1x HDMI, 1x DisplayPort, 2 x Intel Thunderbolt 4
Features: 2.5G LAN, 802.11axe Wi-Fi 6E Module, Bluetooth 5.3

৳41,500.00 ~~৳45,000.00~~

Quantity :

Quantity:

Total price :

(Tax : )

Overview
Reviews

Specification

Basic Information
Supported CPU	Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM) Supports Intel® Hybrid Technology Supports Intel® Turbo Boost Max 3.0 Technology Supports Intel® Thermal Velocity Boost (TVB) Supports Intel® Adaptive Boost Technology (ABT) Integrated NPU for dedicated AI acceleration
Chipset	Intel Z890
BIOS	256Mb AMI UEFI Legal BIOS with GUI support
Form Factor	ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm 2oz Copper PCB
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio
Expansion Slots
PCI	CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode Chipset: 2 x PCIe 4.0 x4 Slots (PCIE3 and PCIE4), support x4 mode 1 x PCIe 4.0 x1 Slot (PCIE2) 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
M.2 Socket	CPU: 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes
Memory
Type	Dual Channel DDR5 Memory Technology
Slots	4 x DDR5 DIMM Slots
Supported Memory	Supports DDR5 non-ECC, un-buffered memory up to 9066MHz+(OC) Supports Clocked Unbuffered DIMM (CUDIMM) Supports Intel® Extreme Memory Profile (XMP) 3.0x
Maximum Memory	256GB
Graphics
Graphics	Intel® Xe LPG Graphics Architecture - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz - 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz*
Connector & Ports
HDMI	1 x HDMI
Display Port (s)	1 x DisplayPort 1.4
USB (s)	CPU: - 2 x Thunderbolt™ 4 Type-C (Rear) Chipset: - 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-A (Rear) - 6 x USB 3.2 Gen1 (2 Rear, 4 Front) - 8 x USB 2.0 (4 Rear, 4 Front)
LAN Port (s)	2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Dragon 2.5G LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control
Wireless Communication module	802.11axe Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax/axe Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.3 Supports MU-MIMO
Supported Storage	CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* - 4 x SATA3 6.0 Gb/s Connectors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Audio	HD Audio Jacks: Line in / Front Speaker / Microphone

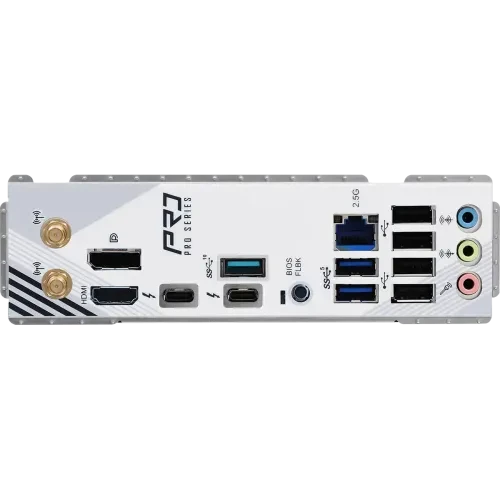

Internal I/O Ports	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks
TPM (Trusted Platform Module )	1 x SPI TPM Header
Others
Special Features	Superb Productivity - PCIe Gen5 (Graphics, M.2) - Dual Channel DDR5 - Thunderbolt™ 4 Type-C Ports (40 Gb/s) Rock-Solid Durability - 16+1+1+1+1 Power Phase, Dr. MOS for VCore+GT with Enlarged Heatsink Armor - Memory OC Shield - Flexible Integrated I/O Shield Ultrafast Connectivity - 2.5G LAN, 802.11axe Wi-Fi 6E Module EZ Update - BIOS Flashback Button - ASRock Auto Driver Installer EZ Troubleshooter - ASRock Post Status Checker
Bundled Software	Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash
Warranty Information
Manufacturing Warranty	3 Year Warranty

Description

ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard

The ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard is a powerhouse built for optimal productivity and robust durability. Supporting Intel Core Ultra Processors and Intel Hybrid Technology, it ensures high-speed performance with features like 16+1+1+1+1 Power Phase Dr. MOS, Enlarged Heatsink Armor, and Memory OC Shield for enhanced stability. With dual-channel DDR5 memory technology, four DDR5 DIMM slots supporting up to 9066MHz+(OC), and a maximum capacity of 256GB, it caters to demanding applications and multitasking needs. The ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard's ultrafast connectivity is evident with PCIe Gen5 for graphics and M.2, Thunderbolt 4 Type-C ports delivering up to 40 Gb/s, 2.5G LAN, and an 802.11axe Wi-Fi 6E module for seamless, high-speed networking. It also supports a wide range of USB ports, including USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, and USB 2.0, ensuring versatile peripheral connectivity. Integrated Intel® Xe LPG Graphics Architecture provides superior visual output through HDMI 2.1 and DisplayPort 1.4, supporting resolutions up to 8K 60Hz. The ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard's advanced audio system, powered by Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio, delivers immersive sound quality. Storage is expansive with multiple M.2 sockets supporting both PCIe and SATA modes, and four SATA3 connectors, supporting various RAID configurations. Additional features like the BIOS Flashback Button, ASRock Auto Driver Installer, and EZ Troubleshooter enhance user convenience, while software tools such as ASRock A-Tuning, Dragon 2.5G LAN Software, and Polychrome SYNC provide comprehensive control. With a form factor of 12.0-in x 9.6-in and 2oz Copper PCB, this ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard is designed for durability and performance, making it an excellent choice for users seeking a high-performance, future-proof solution for their computing needs.

Buy ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard From Fast Deals

In Bangladesh, you can get original ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard From Fast Deals. We have a large collection of latest ASRock Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest Fast Deals Shop to get yours at lowest price. The ASRock Z890 Pro RS WiFi White LGA1851 DDR5 ATX Motherboard comes with a 3-year Warranty.

What is the price of ASRock Z890 Pro RS WiFi White LGA1851 DDR5 Motherboard in Bangladesh?

The latest price of ASRock Z890 Pro RS WiFi White LGA1851 DDR5 Motherboard in Bangladesh is 41,500৳. You can buy the ASRock Z890 Pro RS WiFi White LGA1851 DDR5 Motherboard at best price from our website or visit any of our showrooms.
